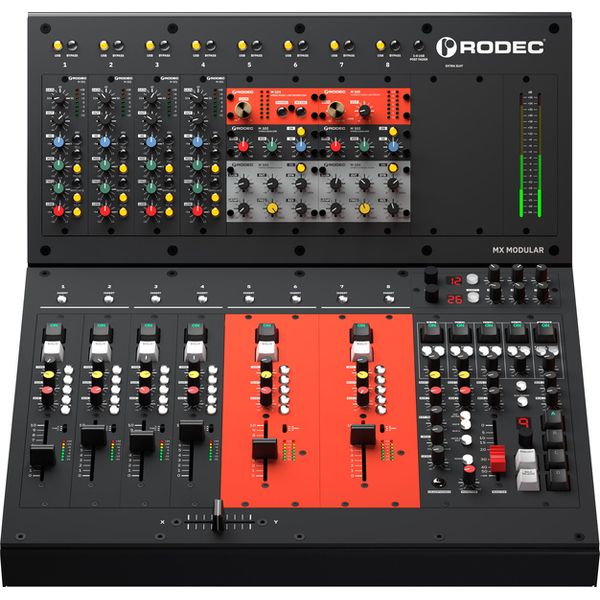

Mixer for Studio and Performance Applications

Flexible routing enables use in various application areas
Equipped with 4x mono channel strip and 2x stereo channel strip
A total of 10 500-format slots: Slot 1-4 occupied by 501 Preamp and EQ, Slot 5-8 occupied by 1x 101 Phono + 1x 108 Line Pre + 2x 102 EQ + 2x 104 Dynamic Filter and 2x K7 Adapter and Slot 9 and 10 free for individual configuration
18-channel AD/DA converter with USB-C interface and AKM ADCs and ESS DACs
Inputs (1-8) per channel switchable between analogue line signals and USB audio
Bypass for channels 1-8 individually switchable - bypasses the 500 format slot and routes the signal directly from the input to the fader module
Insert switchable per channel (1-8)
Stereo insert on the master bus and the buses (1 and 2)
X/Y crossfader for channels 1-8
Channels 9-16 are grouped into four stereo pairs
On button per stereo pair (9-16) activates routing to the master bus
Volume control per stereo pair (9-16)
Programmable mute and solo buttons
LED VU meter
2 Stereo AUX sends and 2 stereo BUS routings per channel
2 Stereo AUX returns
3 Analogue summator buses including the master bus
Up to 26 analogue summing channels: 16 USB or analogue inputs
External stereo input
2 Stereo AUX returns and 2 stereo BUS returns
Direct Out per channel (after the 500 module)
Balanced high-end master output with discrete operational amplifiers and Lundahl transformers with +28 dBu headroom
Monitor output
Headphone output with individual level control and cue/mix control
CV input for all 500 slots - requires compatible 500 modules such as the M-104 Dynamic Filter Module
19" rack mounting format
Dimensions (W x D x H): 451 x 625 x 285 mm
Weight: 14.6 kg

30 dias dinheiro de volta

Thomann garantie de 3 anos

€ 12.790

Todos os preços incl. IVA
